Détails sur le produit:
Conditions de paiement et expédition:
|
| Matériel: | Polonais des substrats EPI du grenat GGG de gallium de gadolinium pour YIG | Diamètre: | 3inch, 4inch |
|---|---|---|---|
| Profondément: | 0.5mm, 1mm | Tolérance: | +/-0.02mm |
| Marque: | CRYSTRO | Origine: | La Chine |

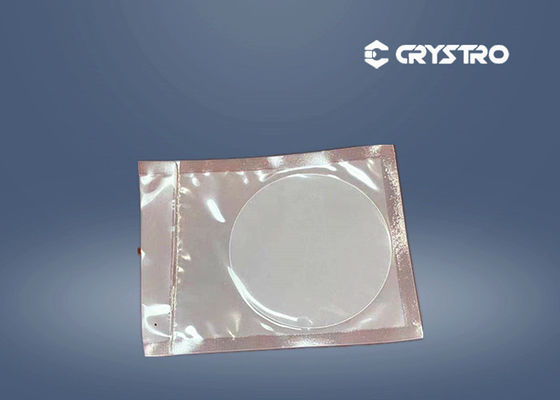

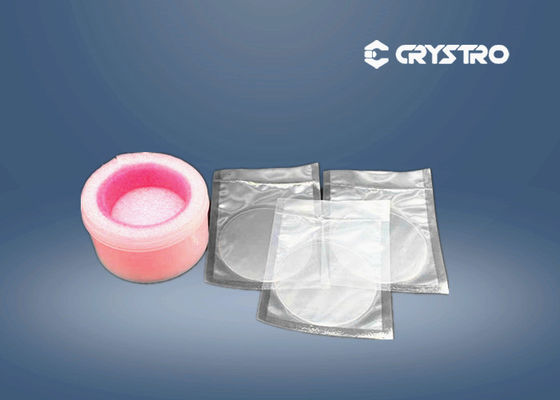

| Rapport d'inspection: | Offert | Paquet: | Encapsulation de vide |
| Surligner: | GGG Crystal For YIG,EPI Polish GGG Crystal,EPI Polish ggg substrates |
||
Gadolinium Gallium Garnet GGG Substrates EPI Polish For YIG
Gadolinium Gallium Garnet is a crystalline garnet (mixed oxide) material with numerous optical applications in addition to acting as a substrate for the growth of other carnet crystals. Crystro manufactures gadolinium gallium garnet in forms such as single crystals, ingots, boules, wafers in both standard and custom dimensions. We offer both polished (single or double sided) and unpolished forms; materials can be doped with rare earths and other elements.
Main Advantages:
Main Properties:
| Chemical Formula | Gd3Ga5O12 |
| Lattic Parameter | a=12.376Å |
| Growth Method | Czochralski |
| Density | 7.13g/cm3 |
| Mohs Hardness | 8.0 |
| Melting Point | 1725℃ |
| Refractive Index | 1.954 at 1064nm |
CRYSTRO supply GGG crystal with:
| Orientation | [111] within ±15 arc min |
| Wave Front Distortion | <1/4 wave@632 |
| Diameter Tolerance | ±0.05mm |
| Length Tolerance | ±0.2mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 30 arc Seconds |
| Perpendicularity | < 15 arc min |
| Surface Quality | 10/5 Scratch/Dig |
| Clear Apereture | >90% |
| Large Dimensions of Crystals |
2.8-76 mm in diameter |
